ZIF5029 is a Z-Wave based device with 6 relay outputs and 6 pulse inputs designed for mounting on a standard M36 DIN rail (EN50022). The 6 relay outputs can be freely controlled over the Z-Wave network and used for various purposes. The 6 pulse inputs can be used to count pulses from different types of consumption meters, such as water, electricity, and gas meters, which have an output that emits pulses when a specific consumption level is reached. You can also connect dual meters, such as an electric vehicle charger, solar panels, or a swimming pool. The 6 relay outputs can be used to control the house's lighting, socket groups, and motors, such as a garage door. ZIF5029 can be used to switch 6 pieces of 230V AC loads that can be freely controlled from the Z-Wave network. All 6 relay outputs are galvanically isolated from each other. ZIF5029 can be powered with 10-24V DC or 8-24V AC. Activation of Z-Wave inclusion and exclusion is done by activating a switch through a hole in the front of the module. ZIF5029 has a LED indicator on the front for status indication.

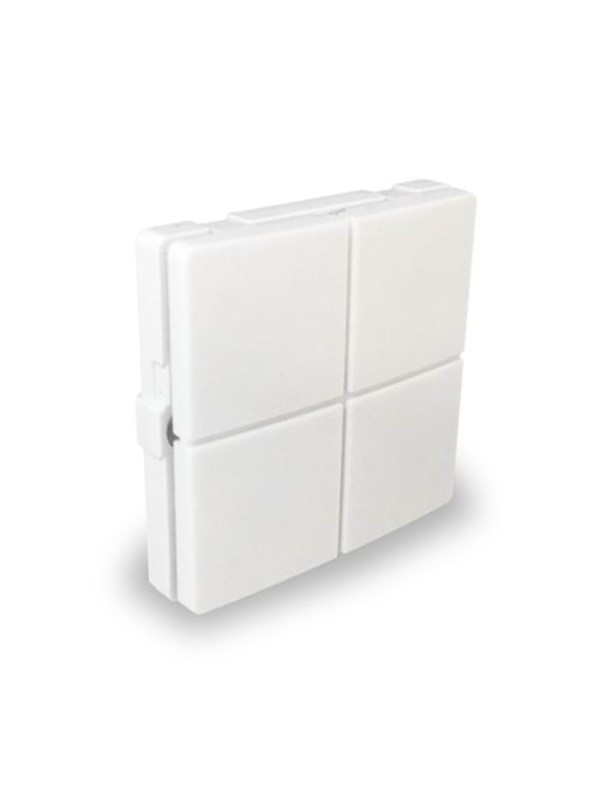

MATRIX dimmer type ZDB5100 is a smart control unit/switch with wireless Z-Wave communication and 4 buttons with backlit keys. MATRIX dimmer can control a local load and thus replace a standard 1-pole switch (requires connection of neutral wire). The wireless Z-Wave network allows the MATRIX to control other Z-Wave devices. Via a controller, it is also possible to control, for example, windows, SONOS, Philips HUE light sources, gates, etc. The 4 button fields of the MATRIX unit are designed with a white diffused uniform LED backlighting in each of them. The MATRIX unit fits all 1-module LK FUGA® compatible boxes and bases, and is compatible with all LK FUGA® frame systems. MATRIX is equipped with spring terminals for easy mounting, as well as loop terminals for the 3 connections. Ideal for converting an IHC installation as it can operate on a voltage between 48-55V DC, allowing you to use the existing IHC Link10 cables.

With the innovative Matrix ZRB5120, light has been added to the traditional wall switch and combined with wireless communication. ZRB5120 features two relay switches, backlighting, and wireless Z-Wave communication with 4 scene controllers. Replace your old wall switch or control lamps with high load using an intelligent control switch. The built-in relays can control two local loads, such as lamp sockets, and thus replace a standard two-pole switch. Use ZRB5120 when you want to control two different light sources separately, or where you cannot use a dimmer. It can turn on and off two separate devices, with a maximum total load of 5A or 1000W for both relays. Designed to fit into all FUGA® compatible frames, boxes, and bases. Functions as a Z-Wave network repeater to strengthen the network. The four buttons are designed with quality and tactile feedback in mind. Up to 16 different options with single press, double press, triple press, long press, and release on each of the four buttons. Elegant and easy-to-clean front. No visible fingerprints. The buttons can light up in any color and be used to indicate the status of a lamp, for night lights, visual alarms, and much more. Ideal for converting an IHC installation as it can operate on a voltage between 48-55V DC, allowing you to use the existing IHC Link10 cables.

MATRIX battery switch type ZBA7140 can control other Z-Wave devices with each of its four buttons. MATRIX battery switch is completely wireless and can be placed anywhere, using double-sided tape or screws. Use the MATRIX battery switch exactly where you want to control your smart home. Combine it with the DIMMY dimmer, MATRIX control switch with relay, MATRIX control switch with dimmer, or other Z-Wave devices to control lights, SONOS, VELUX windows, curtains, relays, etc. Up to 16 different options with single press, double press, triple press, long press, and release on each of the four buttons. Designed to fit into all FUGA® compatible frames, boxes, and bases. Elegant and easy-to-clean front. No visible fingerprints. Based on the Z-Wave Plus 700 Series platform. The four buttons are designed with quality and tactile feedback in mind.
